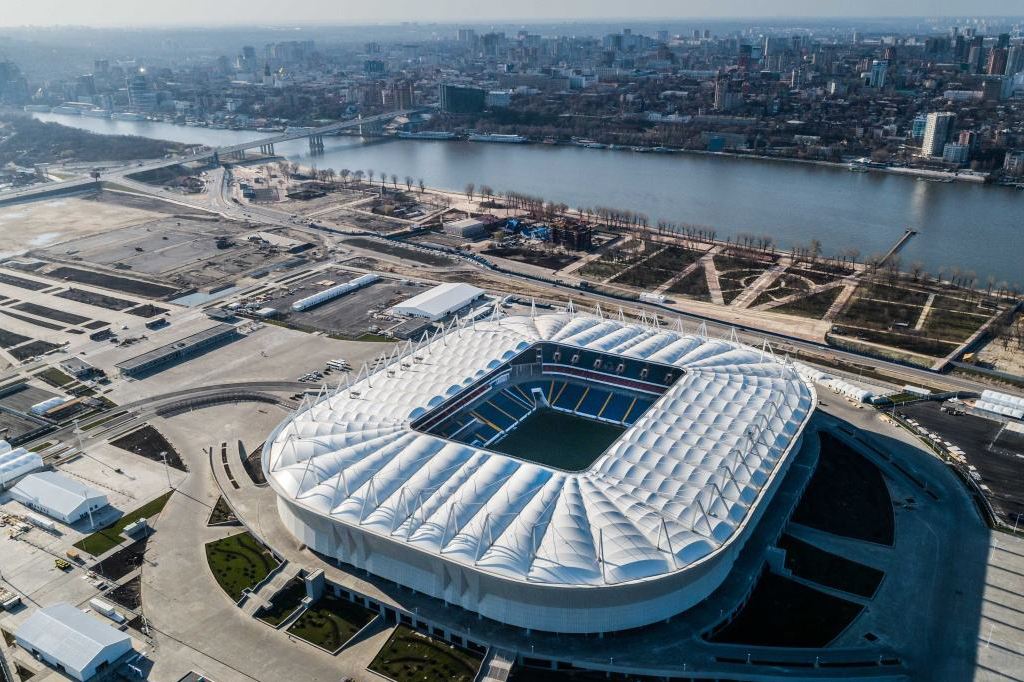

From June 14th to July 15th, the 2018 World Cup was held in 12 stadiums in 11 cities within Russia: Luzhniki Stadium, Sparta Stadium, Krestovsky Stadium, Rostov Arena... most of which were newly built large stadiums.

These large-scale international sports events generally have the characteristics of multiple participating countries, a large number of personnel, and concentrated materials. Sports venues, as densely populated places, belong to key fire prevention units. They have large space and special building structures. When holding events, there are many combustible materials in props, scenery, various electrical facilities, circuits, etc. A slight negligence can easily cause accidents such as fires, resulting in significant international political impact, casualties, economic losses, and other consequences. Therefore, as an important component of the World Cup, the fire prevention system inside sports venues is crucial, and fire doors play an extremely important role in this regard.

The fire doors of the sports hall are mainly installed in the fire safety evacuation routes and internal fire compartments. The main features are: large size, sturdy and durable, using high-quality thickened galvanized steel plates and equipped with heavy-duty fire hinges and high-power door closers, ensuring daily safety while preventing fire. When equipped, steel and stainless steel fire doors with fire resistance ratings of Class B 1h and Class A 1.5h are selected according to the usage environment.

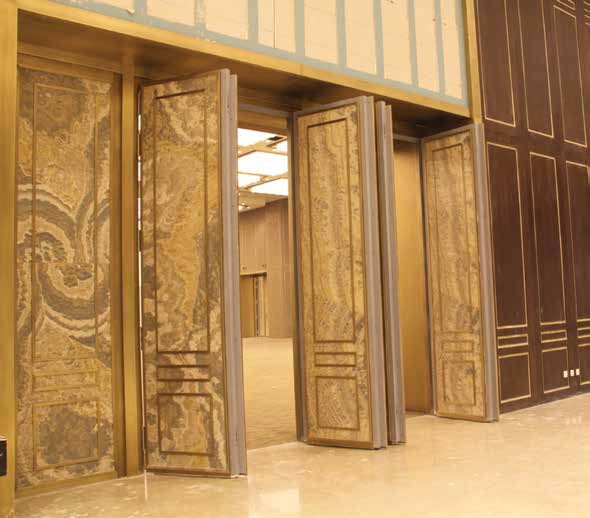

1. Extra large fireproof door

·Fire resistance: Class A 1.5h;

Product Features

·The door frame is made of high-quality galvanized steel plate processed and bent, with a double-layer door frame structure. The door frame has good strength and is not easily deformed;

·The door leaf is made of high-quality galvanized steel plate processed and bent. There is a specially designed broken bridge keel skeleton inside the door leaf, which ensures the overall strength of the door leaf and is not easily deformed. The door leaf is filled with green and environmentally friendly fireproof materials, with a density of 500kg/m2, which is harmless to human health and the environment;

Hardware features

·The lock body is made of steel, and the lock panel is made of stainless steel material, which meets the requirements of fire prevention and is beautiful and durable. Select 8-inch stainless steel bearing hinges, with a single piece bearing capacity of up to 120 kilograms, to prevent the door leaf from sagging easily;

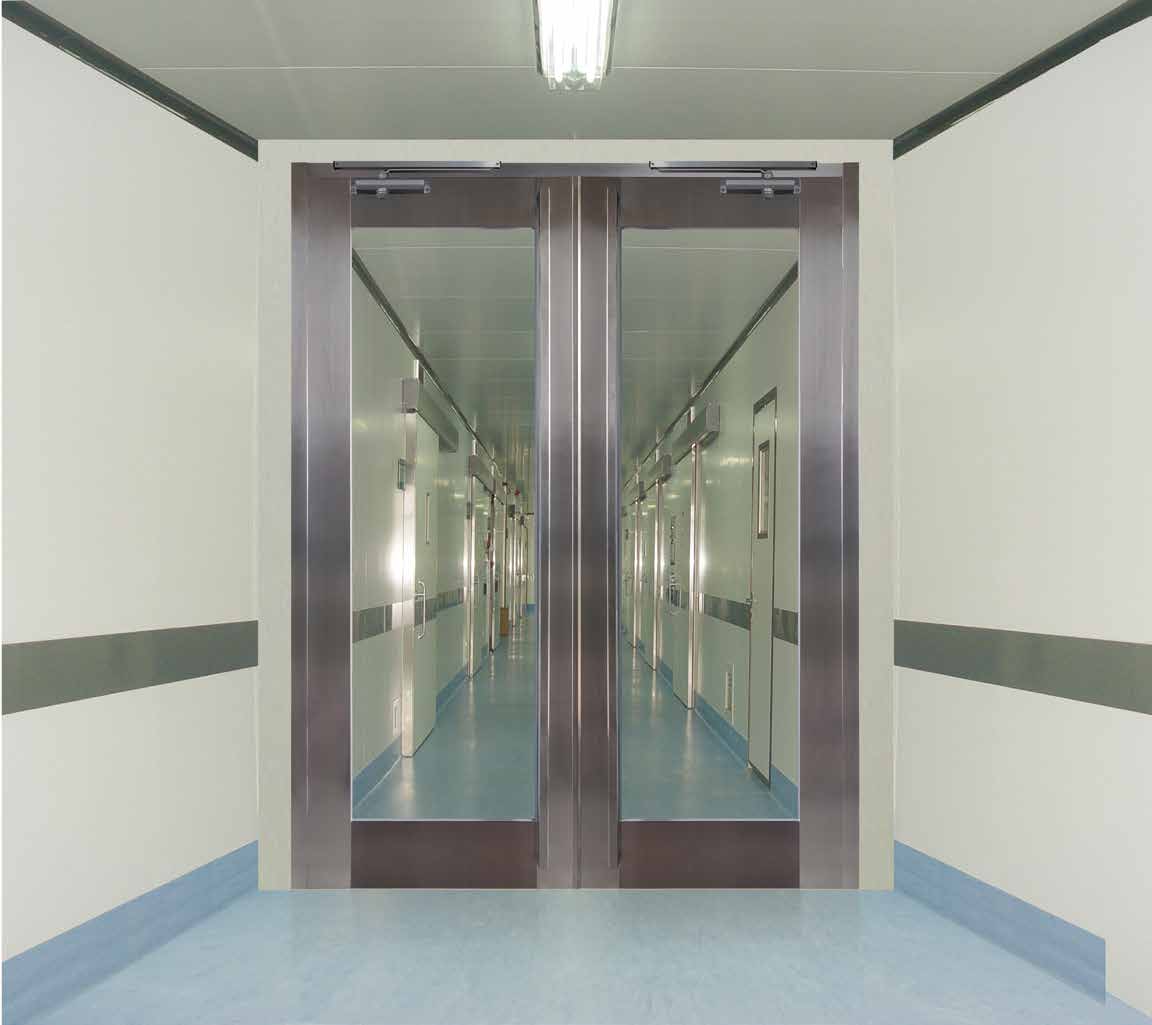

2. Stainless steel large glass fireproof door

·Fire resistance: Class B 1h

Product Features

·The door frame is made of 1.2mm high-quality galvanized steel plate and 0.8mm stainless steel plate composite processing, and the door leaf is made of 0.8mm high-quality galvanized steel plate and 0.8mm stainless steel plate composite processing, with no welding points on the surface. The stainless steel "V" card is processed afterwards, and the bending angle is close to 90 degrees. Double layered door frame structure, with good overall strength and not easily deformed; The interior of the skeleton is filled with green and environmentally friendly fire-resistant materials.

·High quality fire-resistant glass is selected, with high strength and strong fire resistance: it can maintain a flame temperature of 1000 ℃ for 90-180 minutes without bursting.

·High weather resistance: Suitable for use in various natural environments, it remains unchanged under long-term exposure to sunlight and has almost the same service life as ordinary glass.

·Stainless steel surface is fingerprint resistant, wear-resistant, and easy to clean

Hardware features

·Featuring various handle configurations such as large handles, hardware solutions can be designed according to specific needs to meet different usage scenarios and functional requirements;

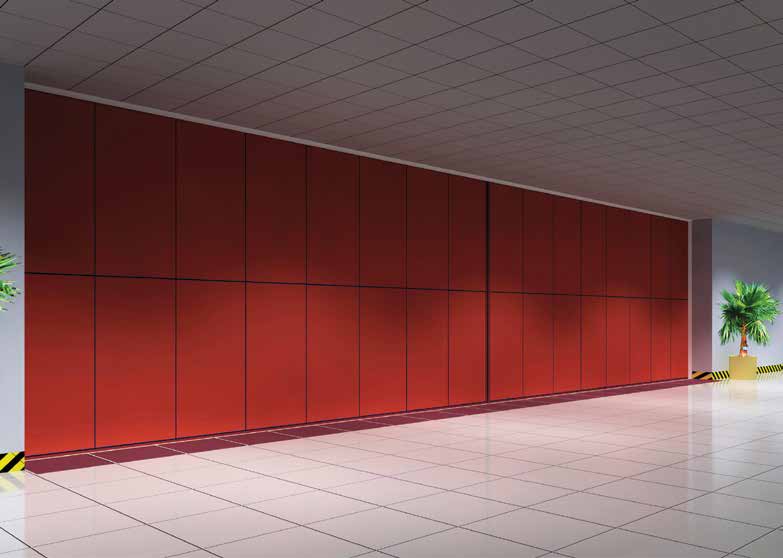

3. Side sliding fireproof door

·Fireproof performance: 3h

Surface Treatment

·Fluorocarbon spraying is a high-end surface coating process;

·Adopting high-end electrostatic powder spraying and liquid spraying methods;

·Has excellent resistance to fading, frost, and corrosion caused by air pollution (acid rain, etc.);

·Strong UV resistance, crack resistance, and ability to withstand harsh weather environments.

Product Features

·Door leaf: 140X80 square steel keel, filled with fireproof materials, decorated with various panels on the surface, composed of multiple rectangular squares; Door frame: made of 1.2mm galvanized steel plate;

·Equipped with backup power supply; After the power is cut off during a fire, the door can still be opened and closed;

·Can achieve manual and remote control of opening and closing;

·After the door is closed during a fire, it can be equivalent to a 3-hour firewall;

·The modular appearance design is aesthetically pleasing and grand.

Hardware features

·Adopting imported door openers, reliable and low-noise operation;

·A complete set of professional design for heavy-duty lifting wheel guide rails, with lightweight and flexible sliding;

·Equipped with sensitive photoelectric anti pinch device to prevent personnel from getting injured;

·We have adopted power outage protection system, safety door closing system, and remote control system. Ensure normal operation and remote control during power outages When there are personnel and obstacles in the passage, the door can stop running to ensure the safety of people, objects, and equipment; The opening and closing status of the door can be displayed in the central control room and remotely controlled to ensure that the door can be closed in a timely manner in case of danger, serving as a firewall.

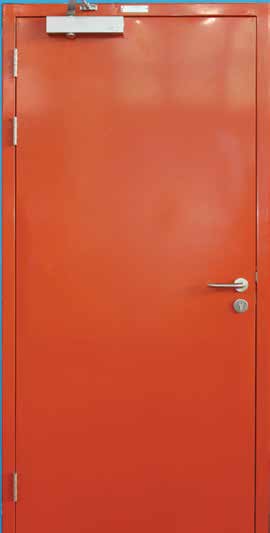

4. Steel fireproof door

·Fire resistance: Class A 1.5h, Class B 1h, Class C 0.5h;

Surface Treatment

·Electrostatic powder spraying or transfer printing process, with a surface that is less prone to detachment, impact resistance, and long-lasting color retention;

·Stainless steel or PVC finish, available in multiple colors to meet different decorative styles.

Product Features

·The door frame is made of 1.2mm high-quality galvanized steel plate, bent and processed, with a single slot/double slot structure. The overall door frame has high strength and is not easily deformed; The door leaf is made of 0.8mm high-quality galvanized steel plate, which is bent and processed;

·The door leaf is filled with green and environmentally friendly fire-resistant materials, which are non-volatile and pose no harm to human health or the environment;

·Application scenarios: fire escape routes, pipeline wells, equipment rooms, etc.

Hardware features

·Choose high-quality stainless steel bearing hinges, which are beautiful and durable. The door leaf opens flexibly without any obstruction, and the opening force is small;

·Hardware solutions can be designed according to requirements to meet different usage scenarios and functional needs.

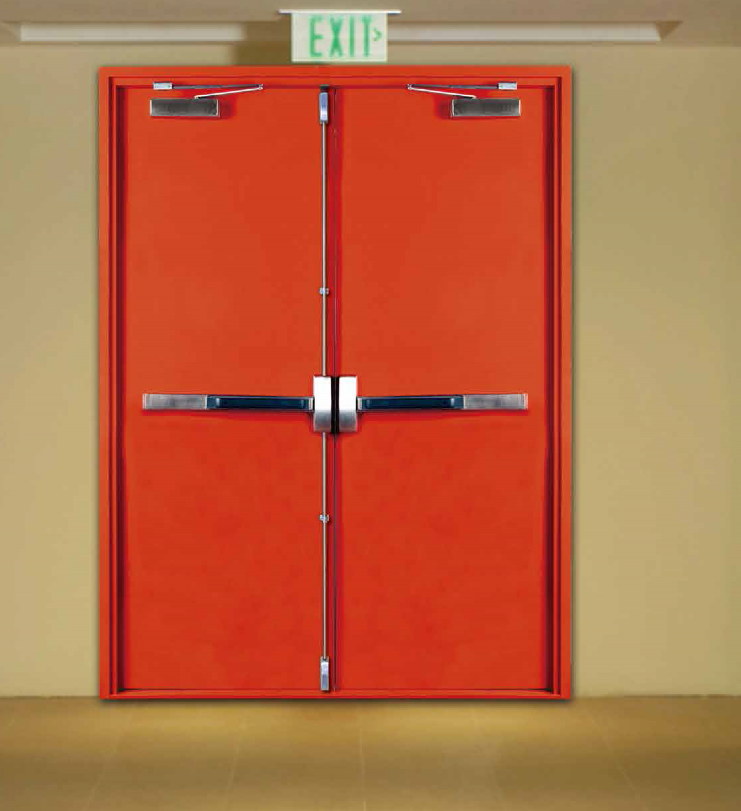

5. Escape fire door

Fire resistance: Class A 1 5h, Class B 1h

Product Features

·Door leaf parameters: 0.8mm galvanized steel plate, with no solder joints on the surface and filled with non-toxic and harmless perlite fireproof board; Door frame parameters: 1.2mm galvanized steel plate, single slot/double slot structure, with fireproof expansion strip pasted inside the frame, with fireproof and smoke proof functions;

·Surface treatment: can be electrostatic powder spray painted or PVC steel plate, with multiple colors to choose from.

Hardware features

·European or American standard escape push bar lock;

·European standard door closer;

·Ordinary or hidden sequencers;

·Stainless steel hinges.

Weiman Door reminds you that in the event of a fire in a sports stadium, you should remember the following 16 words: remain calm and composed; Choose a path; Pay attention to smoke prevention; Never return.
